Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer

Brand Name:	Jufeng
Model Number:	JF-050
MOQ:	1 unit
Price:	contact us
Packaging Details:	wooden case
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Rohs, CE

Name:

Refrigerated Air Dryer

Pressure:

16 Bar

Ambient Temperature:

1-38°C

Air Volume:

6.5 M³/min

Pressure Dew Point:

2 — 10℃

Warranty:

1 Year

Supply Power:

220V/50Hz

Net Weight:

49.2kg

Supply Ability:

2000 unit per month

Highlight:

7 bar-10 bar（Customizable） Refrigerated air dryer

0.2~0.3MPa Refrigerated air dryer

7 bar-10 bar（Customizable） Refrigerated air dryer 0.2~0.3MPa

Product Description

Jufeng 0.7-16MPa 6.5m³/min Refrigerated Air Dryer

Product introduction

The JF-050 Refrigerated Air Dryer is designed to deliver ISO 8573-1 Class 4 compressed air by effectively removing moisture, oil aerosols, and contaminants. Ideal for industrial applications requiring 6.5 m³/min flow at 16 bar, it ensures reliable performance with 3°C dew point to protect downstream equipment from corrosion and operational downtime.

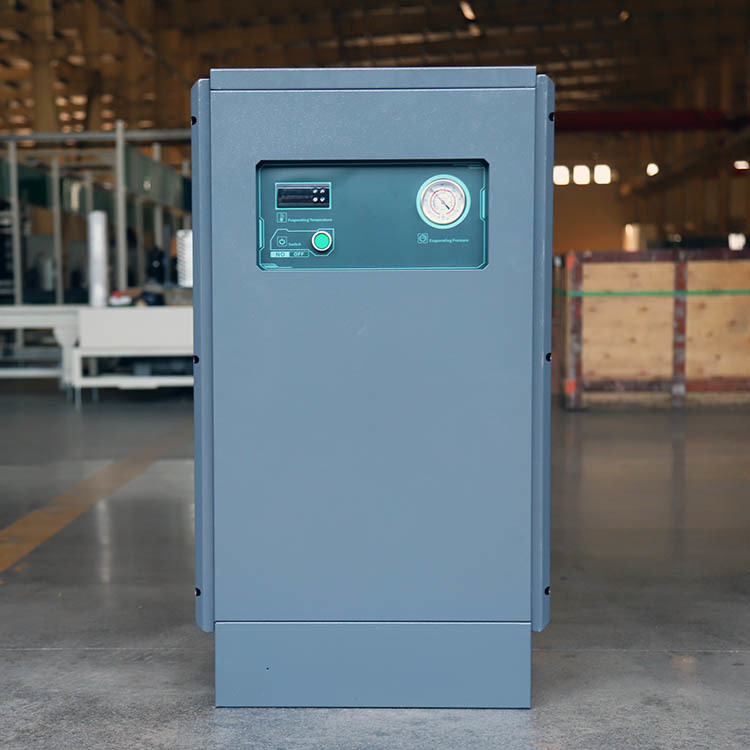

Product photo

Product parameter

Air handling capacity	6.5m³/min
Compressed air inlet pressure	7~16 bar
Air inlet temperature	≦ 60℃
Standard ambient temperature	1~38℃
Pressure dew point	2-10℃
Pressure loss	≦ 0.018Mpa
Drain valve	Electronic automatic drain valve
Cooling method	Air cooling
Power supply V/PH/Hz	110VAC 60Hz 1P
Machine power	1.68kw
Compressor power	1.52kw/60Hz
refrigerant	R410A
Inlet and outlet interface size	G1-1/2"
Dimensions(lwh)	860mm × 530mm × 960mm
Net weight	49.2kg
