100hp 75kw Pharmaceutical Two Stage Air Compressor Oil Injected Double Stage Screw Compressor

100hp 75kw Pharmaceutical Two Stage Air Compressor Oil Injected Double Stage Screw Compressor

75kw pharmaceutical two stage air compressor

pharmaceutical two stage air compressor oil injected

100hp oil injected double stage screw compressor

Place of Origin:

Jiangsu

Brand Name:

Jufeng

Certification:

CE, ISO, etc.

Model Number:

JF-100AHV

Contact Us
Request A Quote
Product Details
Noise Level:
70 ± 2 DB(A)
Motor Power:
75 Kw
Discharge Capacity:
8.82-19.95 M³/min
Pressure:
0.5~1.5 Mpa
Weight:
2650kg
Dimension(l*w*h):
2150*1740*1550 Mm
Warranty:
One Year For The Machine
Payment & Shipping Terms
Minimum Order Quantity
1 units
Price
contact us
Packaging Details
Plywood cases
Delivery Time
15-30 working days
Payment Terms
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Supply Ability
400 units per month
Product Description

Two-Stage Compression 100hp 75kw Horizontal Permanent Magnet Compressor Screw Air Compressor



  • Two-stage compressor Jufeng air end, first level energy efficiency, low vibration and low noise.
  • The Two-stage compression instead of the single stage compression,the exhaust volume increased by nearly 15%, which can achieve 15% energy saving effect.
  • IP65 PM motor with higher efficiency and can be adapted to the poor and dusty working conditions.
  • Touchable LED controller, intelligent control, high-efficiency motor protection level IP65.





Technical parameter

Model Power KW Pressure Bar Exhaust volume m³/min Noise dB(A) Outlet pipe diameter Dimension(L*W*H) mm Weight kg Oil L
JF-100AHV 75 5 19.95 70 ± 2 DN80'' 2500*1700*1900 2650 70
7 15.4 DN65'' 2150*1740*1550
8 15.2
10 12.65
13 11.73
15 8.82







Product photo

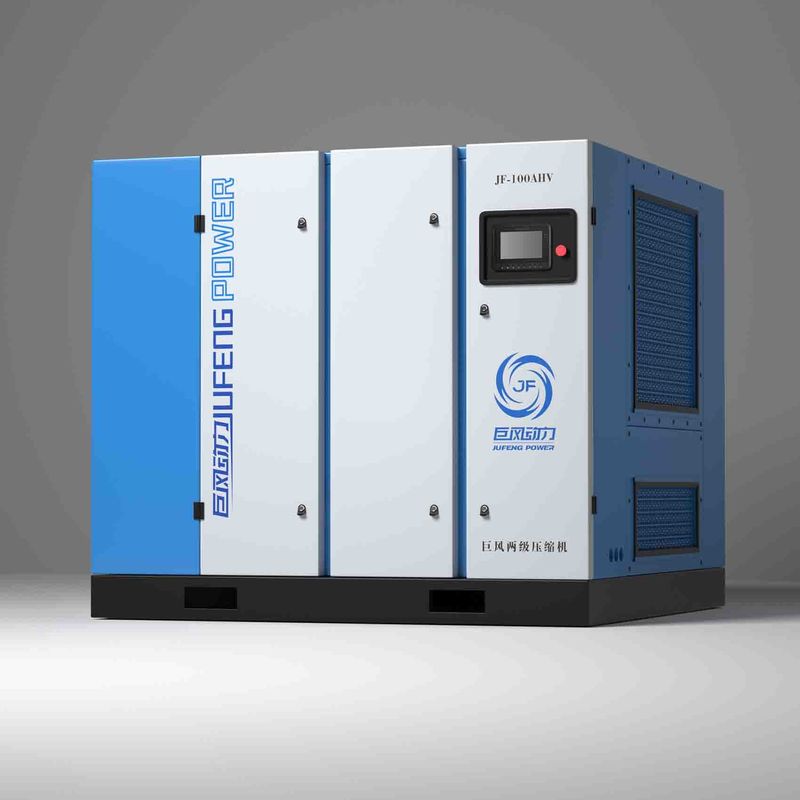

100hp 75kw Pharmaceutical Two Stage Air Compressor Oil Injected Double Stage Screw Compressor 0





Two-stage compression is more energy-efficient than one-stage compression



100hp 75kw Pharmaceutical Two Stage Air Compressor Oil Injected Double Stage Screw Compressor 1





FAQ

1. Who are we?
We are based in Jiangsu, China. A manufacturer specializing in producing screw air compressors. There are total about 301-500 people in our office.



2. How can we guarantee quality?
Always a pre-production sample before mass production;Always final Inspection before shipment.



3:Can you use our brand?
Yes, OEM is available.



4. Why should you buy from us not from other suppliers?
Original air end technology is from Europe, the powerful heart decides the high performance of the whole. In 2013, Jufeng air compressor has been selected as Guangdong famous brand.



5:Why should I choose you?
1. 24/7 after sales service support in different languages;
2. Follow up the feedback of products in 2 months interval by email or call;
3. Guidance of installation and commissioning on site can be provided by factory- trained technicians or local Authorized Service Center;
4. Technical training for customers in Jufeng air compressor factory or working site;
5. Plenty of original spare parts with proven quality are all available from our central stocks in Guangdong/Jiangsu Province and all distributors'depots.
