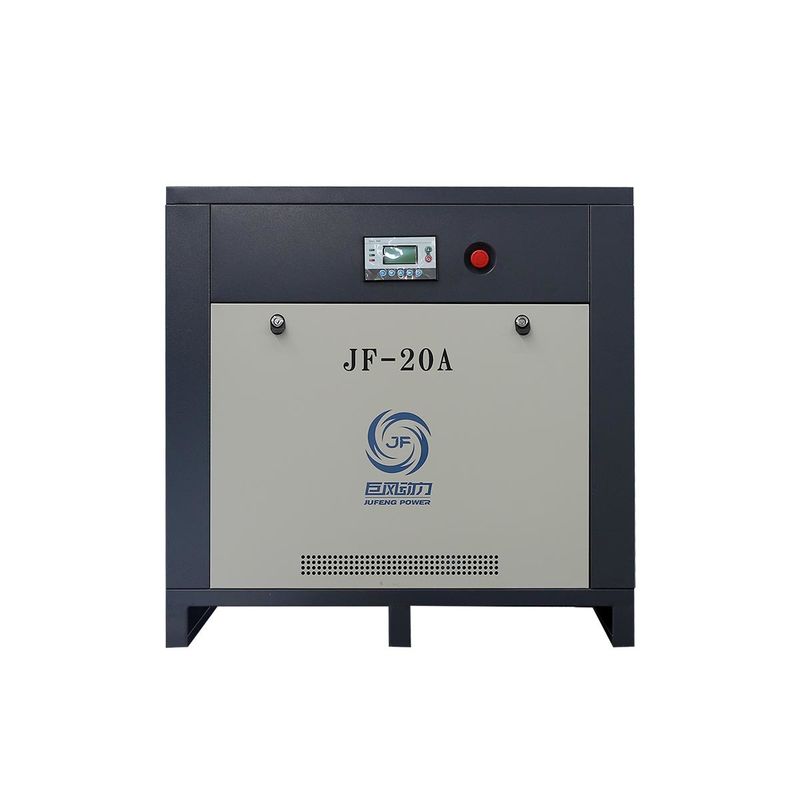

Fixed Speed Direct Driven Air Compressor 15kw 20HP IP23 / IP54 Screw Type Compressor

Brand Name:	Jufeng
Model Number:	JF-20AZ
MOQ:	1 unit
Price:	contact us
Packaging Details:	Plywood cases；11008801370mm
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, etc.

Motor Power:

15kw

Voltage:

380V/220V Or Customized

Cooling Method:

Air/Water Cooling

Pressure:

7-12bar

Noise Level:

67±2 DB(A)

Motor Type:

Fixed Speed Type

Type:

Screw

Motor Protection Level:

IP23/IP54/IP55

Supply Ability:

5000 units per month

Highlight:

ip54 screw type compressor

fixed speed direct driven air compressor

ip23 screw type compressor

Product Description

15kw 20HP IP23/IP54 Single Stage Fixed Speed Direct Driven Screw Air Compressor

Easy to install, operate and maintain, anti oil pollution and corrosion.
Compact structure, high transmission efficiency, can improve efficiency and save energy.
Ensure accurate transmission, the damping vibration isolating characteristic can effectively eliminate the vibration and impactcaused by the air end.
The production cost is higher than the belt transmission.

Screw Air Compressor Technical Parameter(Direct Driven)

Model	Power kw	Exhaust volume m³/min	Pressure bar	Dimension(LWH)mm	Weight kg	Speed	Noise level dB(A)	Air outlet pipe diameter
JF-20A	15	2.4	7	1050x750x1000	310	2920	67±2	G¾"
		2.3	8
		1.8	10
		1.7	12
