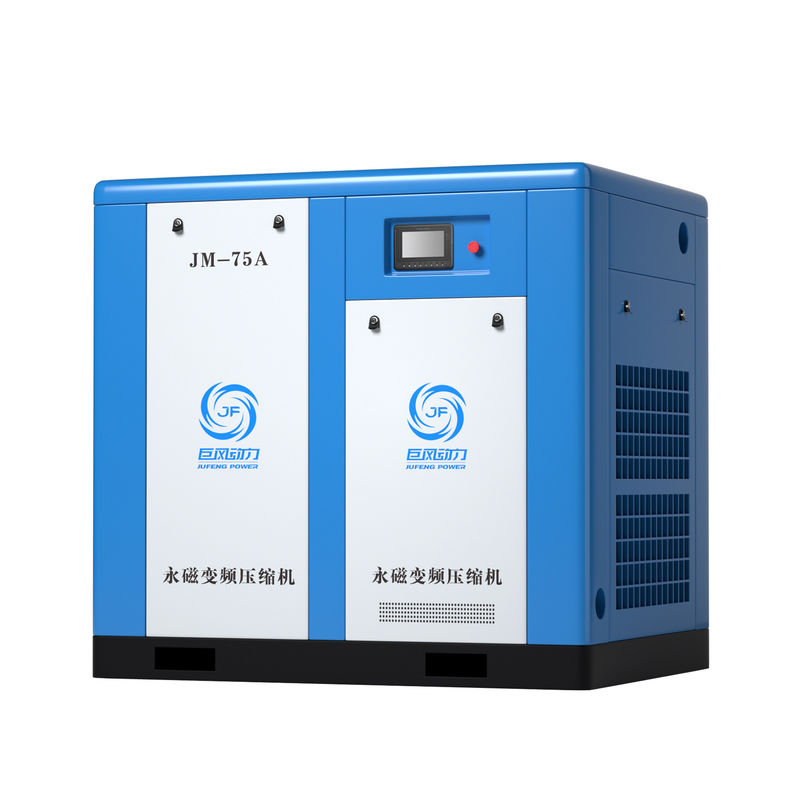

75 HP Single Stage Screw Type Permanent Magnetic VSD Air Compressor 55KW

Brand Name:	Jufeng
Model Number:	JM-75A
MOQ:	1 unit
Price:	contact us
Packaging Details:	Three plywood cases；180012501600mm
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, ASME, etc.

Document:

Compressor Type:

Rotary Screw

Model:

JM-75A

Power Range:

55 KW

Control System:

Variable Speed Drive

Power Source:

Electric

Motor Type:

Permanent Magnet Synchronous Motor

Cooling System:

Air Cooler, Water Cooler

Voltage:

Standard(380v/50hz), Customization Is Also Acceptable

Outlet Size:

Supply Ability:

5000 units per month

Highlight:

Permanent Magnetic VSD Air Compressor 100KW

Screw Type Permanent Magnetic VSD Air Compressor

Single Stage 75 hp screw compressor

Product Description

75HP Single stage Screw Type Permanent Magnetic VSD air compressor 55kw

Product introduction

Jufeng permanent magnet variable frequency screw air compressor delivers high efficiency, stable performance, and significant energy savings. Equipped with a permanent magnet motor and advanced frequency conversion technology, it adjusts speed automatically to match demand, reducing power consumption by up to 30%. Ideal for industrial use, it ensures low noise, minimal maintenance, and long service life.

75 HP Single Stage Screw Type Permanent Magnetic VSD Air Compressor 55KW 0

Product Parameters

Model: JM-75A

Power: 55kw

Exhaust volume: 10.5/9.6/8.5/8.1m³/min

Pressure: 0.7/0.8/1.0/1.2Mpa

Noise level: 74±2dB(A)

Outlet pipe diameter: G2''

Dimension: 1800*1250*1600mm

Weight: 1180kg

Product photo:

75 HP Single Stage Screw Type Permanent Magnetic VSD Air Compressor 55KW 1

75 HP Single Stage Screw Type Permanent Magnetic VSD Air Compressor 55KW 2

The advantages of variable frequency air compressors

The first energy saving of inverter compressor

Variable flow,aviod the waste of loading and unloading control

Variable frequency compressor with its speed changing control technology which perfectly meet customer requirment.Not only reduces the high-loaded running current,but also avoids the waste if energy by 45%in unloading.

The second energy saving of inverter compressor

Maintain the pressure and supply the air,avoiding the waste of pressure gap by 2 bar Variable frequency compressor maintains the pressure at 6bar and supply the air constantly,not only ensure the stable air supply pressure but also avoids the high-load current waste caused by 2 bar pressure gap.

Factory

75 HP Single Stage Screw Type Permanent Magnetic VSD Air Compressor 55KW 3

75 HP Single Stage Screw Type Permanent Magnetic VSD Air Compressor 55KW 4

75 HP Single Stage Screw Type Permanent Magnetic VSD Air Compressor 55KW 5

Certificates

Exhibitions
