2-in-1 Integrated Screw Air Compressor with Air Receiver Tank

Brand Name:	Jufeng
Model Number:	JF-10AT
MOQ:	1 unit
Price:	contact
Packaging Details:	Export wooden box packaging
Payment Terms:	T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, etc.

Document:

jufeng brochure-2025.pdf

Power Source:

Electric

Working Pressure:

7-13 Bar

Air Flow:

0.65-1.2m³/min

Motor Type:

Direct Drive

Application:

Industrial Use

Motor Power:

7.5 Kw (10 Hp)

Motor Protection Level:

IP54/IP23

Cooling Method:

Air Cooled

Air End:

Jufeng

Certifications:

CE, ISO 9001, ISO 14001

Supply Ability:

2000 units per month

Highlight:

Compressor Air Treatment Equipment

Product Description

2-in-1 Integrated PM Screw Air Compressor with Air Receiver Tank

Product introduction

Introducing the innovative Permanent Magnet Variable Frequency Screw Air Compressor with Integrated Air Tank—a compact, efficient, and space-saving solution designed to meet your compressed air needs with exceptional performance and energy savings. This all-in-one unit combines a high-efficiency screw compressor with a built-in air storage tank, simplifying installation, reducing footprint, and optimizing air system performance.

Key Features:

Permanent Magnet Variable Frequency Motor: Delivers high efficiency, adaptive speed control, and significant energy savings (up to 30% compared to fixed-speed models), ensuring precise pressure matching to demand.

Integrated Air Tank: Eliminates the need for separate external tanks, saving space and reducing installation costs while providing stable air storage and immediate availability.

Compact Design: Perfect for facilities with limited space, the unified structure minimizes connections, lowers leakage risks, and enhances reliability.

Energy-Efficient Operation: The variable frequency drive (VFD) automatically adjusts motor speed based on real-time air consumption, reducing idle time and power waste.

Smart Control System: User-friendly interface for real-time monitoring, customizable pressure settings, and automated maintenance alerts for increased uptime.

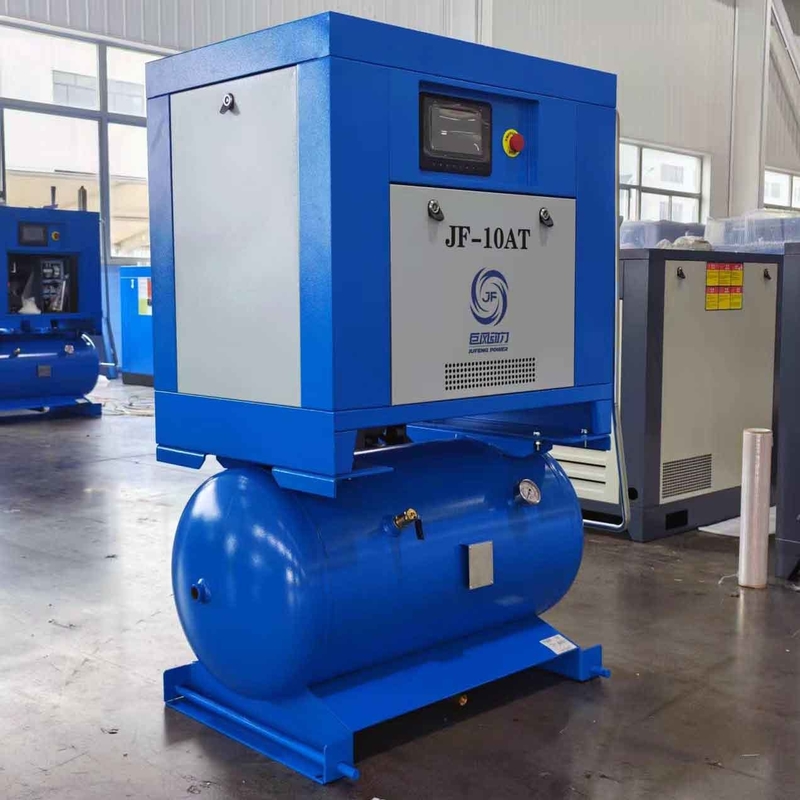

Product photo

2-in-1 Integrated Screw Air Compressor with Air Receiver Tank 0

Product parameters

Model	JF-10AT
Tank	200L
Power	7.5kw
Exhaust volume	1.2/1.1/0.9/0.75/0.65m³/min
Pressure	7/8/10/12/13bar
Noise level	64±2dB(A)
Wheel	Can be added
Motor protection grade	IP23/IP54 or you need
