Middle High Air Pressure 90HP Direct Drive Screw Compressor 185 Cfm Air Compressor

Brand Name:	Jufeng
Model Number:	JH-90AHV
MOQ:	1 unit
Price:	contact us
Packaging Details:	plywood case
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

ISO900, ISO14001, CE, GC, etc.

Type:

Screw Air Compressor

Power Source:

Electric

Pressure:

Middle High

Weight:

1380 Kg

Working Pressure:

20-40 Bar

Noise Level:

72±2 DB(A)

Control System:

PLC

Motor Power:

30+37 KW

Drive Method:

Direct Drive

Dimension:

2070*1350*1650 Mm

Oil Content:

≤ 3 Ppm

Displacement:

2.2-5.8 M3/min

Cooling Method:

Air Cooling

Supply Ability:

1000 units per month

Highlight:

Direct Drive Screw Air Compressor

90HP Screw Air Compressor

185 Cfm Screw Air Compressor

Product Description

20/30/40 Bar Middle High Air Pressure Compressor 90HP Screw Compressor 185 Cfm Air Compressor

Product advantage

Compared with the piston air compressor, the noise is lower, the vibration is smaller, the displacement loss is small, and the air source quality is higher. Full series of matching air cooling cooling system, no need to install cooling tower, no need to install foundation, simple and convenient installation.
Replace traditional asynchronous motors with more efficient PM synchronous motors. PM FC control, smooth start, small impact on the power grid.
It can achieve 30%~100% FC constant voltage control, reduce no-load, can achieve energy saving of more than 25%. The compression system
comes with efficient stainless steel freeze-dryer, and the dew point of the discharged compressed airis about 5-7%.

Widely used in:
PET blowing,rubber,testing,laser cutting and other industries.

Product picture

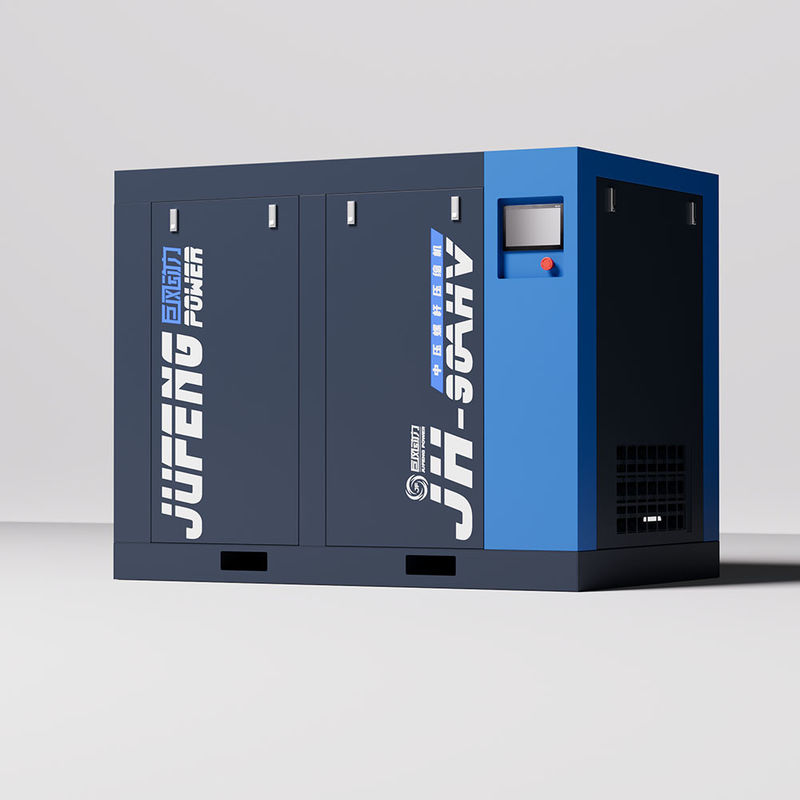

Middle High Air Pressure 90HP Direct Drive Screw Compressor 185 Cfm Air Compressor 0

Middle High Air Pressure 90HP Direct Drive Screw Compressor 185 Cfm Air Compressor 1

Product parameter

Model	Power(KW)	Exhaust Volume	Pressure	Dimension(LWH)	Weight(KG)	Cooling Method	Noise	Air Outlet Pipe Diameter	Start Mode
JH-90AHV	30+37	2.6-5.8	2.0	207013501650	1380	Air cooling	72±2	DN25	Frequency conversion
		2.5-5.6	2.5
		2.4-5.4	3.0
		2.2-5.0	4.0
