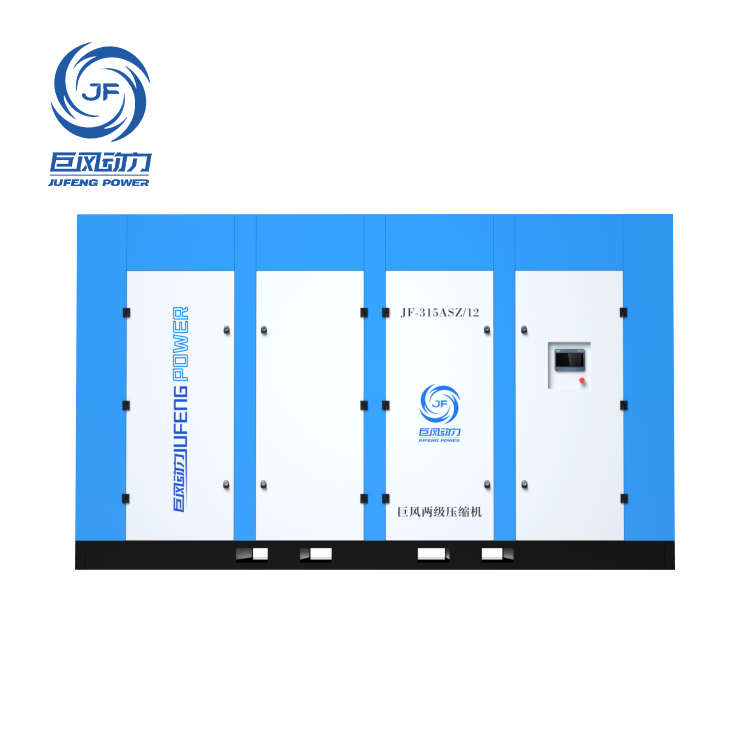

The Jufeng 315kW Two-Stage Compression High-Voltage Screw Air Compressor is the ultimate solution for massive-scale air requirements demanding peak thermodynamic efficiency and exceptional durability. By incorporating an advanced 10kV high-voltage motor architecture alongside a precision-engineered two-stage rotary air end, this system slashes structural energy loss while connecting directly to high-voltage plant power grids, entirely eliminating the costs and efficiency drops of massive step-down transformers.

Key Engineering Advantages

1. Direct 10kV High-Voltage Grid Integration

Reduced Line Losses: High-voltage (10kV) electrical distribution significantly minimizes copper losses ($I^2R$) within the plant's internal wiring compared to low-voltage alternatives.
Eliminate Transformer Expenditure: Bypasses the need for massive, high-maintenance step-down substations, dropping initial infrastructure installation costs.
Premium Reliability: Built with heavy-duty IP55/Class F high-voltage motors designed to withstand industrial-grade grid harmonics and rigorous starting sequences.

2. Advanced Two-Stage Compression Air End

Isothermal Optimization: Lower pressure ratios per stage reduce internal air slippage and lower discharge temperatures, vastly extending rotor and bearing lifetimes.
Heavy-Duty Bearing Layout: Utilizes world-class SKF cylindrical and angular contact bearings to handle uncompromised axial and radial forces under 24/7 heavy industrial cycles.

3. Intelligently Engineered Control & Filtration

IoT-Enabled PLC Command Center: Continuous multi-point monitoring of temperatures, high-voltage currents, pressures, and phase status with automatic protection trips and modbus/remote connectivity.
Proportional Heavy-Duty Intake Valve: Dynamically modulates air inlet volume to stabilize system pressure while reducing unloading energy waste.

Technical Specifications

Rated Motor Power	315 kW / 430 HP
Operating Voltage / Frequency	10,000 V (10 kV) / 50 Hz or 60 Hz (3-Phase)
Compression Technology	Dual-Stage (Two-Stage) Rotary Screw Air End
Available Pressure Variants	7.0 Bar \| 8.0 Bar \| 10.0 Bar \| 13.0 Bar
Free Air Delivery (FAD) Capacity	63.5 m3/min @ 7 Bar \| 59.0 m3/min @ 8 Bar \| 52.2 m3/min @ 10 Bar
Motor Enclosure / Insulation	IP55 / Class F Premium High-Voltage Spec
Cooling Methodology	Air-Cooled (Standard) / Water-Cooled (Optional for high ambient heat)
Driven Configuration	1:1 Direct Flexible Coupling Drive (Zero Transmission Loss)
Discharge Oil Content	≤ 2 ppm (via high-efficiency multi-stage air/oil separation)

Target Application Scenarios

Chemical & Petrochemical Industries: Providing pulse-free, high-volume instrumentation and process air for 24/7 continuous production loops.
Mining & Tunneling Excavation: Supplying unwavering pneumatic energy safely to massive deep-underground networks.
Steel & Textile Manufacturing: Sustaining vast arrays of pneumatic blast equipment, material handling lines,and automated weaving machinery.
