The Jufeng piston air compressor is a compact piston air compressor designed for breathing air and industrial auxiliary air applications. Its small footprint and portable design make it suitable for sites where a dedicated or centralized air supply is not available.

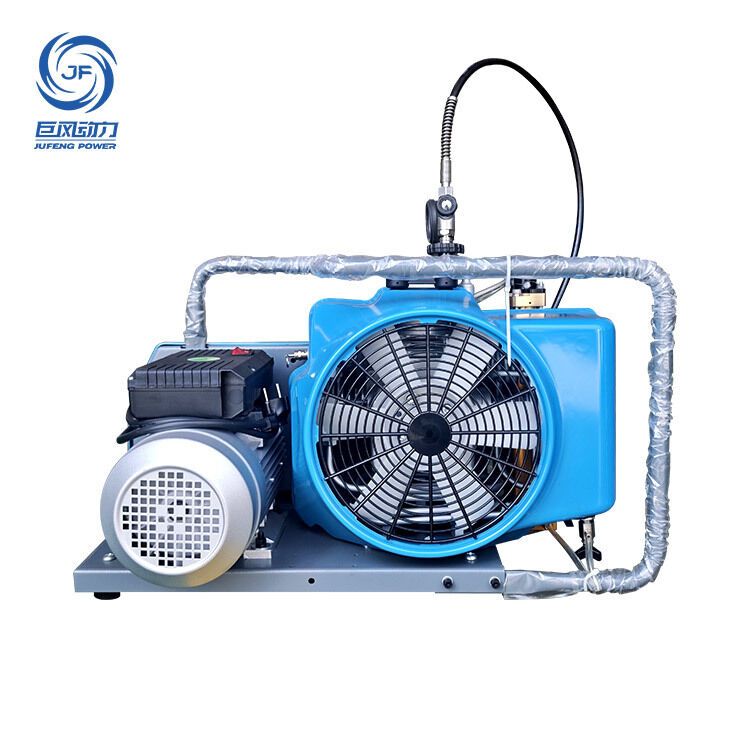

Product photo

Small High Pressure Electric Piston Air Compressor

Product Features

Piston compression: Proven and reliable structure, relatively simple to maintain, well suited for intermittent and small-to-medium air demand.
Portable design: Compact body, with optional wheels or carrying handles for easy movement between workshops, job sites, or outdoor locations.
Breathing air capability: Selected configurations include a breathing air purification system, making it suitable for breathing air cylinder filling.
Simple operation: Intuitive panel controls; startup and operation require no complex setup.

Typical Applications

Breathing air filling (firefighting, diving, industrial respiratory protection)
Industrial blowing and cleaning
Leak testing and pipeline pressure testing
Driving small pneumatic tools
Independent air supply for outdoor or temporary worksites

Notes

Piston compressors are suited for intermittent operation, not continuous high-load running over long periods.

If used for breathing air, confirm that the model is equipped with a compliant breathing air purification system and that air quality is tested regularly.

Product parameters

Model	STAGES	Air flow L³/MIN	Pressure MPA	Speed RPM	Power KW	Weight KG	Size LWH mm
D JF-100	Three stage	100	20/30	2300	2.2	46	700380420
D JF-150	Three stage	150	20/30	2300	3	52	700380420
D JF-200	Three stage	200	20/30	1250	4	117	1330590570
D JF-300	Three stage	300	20/30	1800	7.5	137	1330590570
D JF-400	Four stage	400	20/30	/	11	150	1330590570
D JF-680	Four stage	680	35/42	1400	15	390	15008601550
D JF-1/350	Four stage	1000	35	1320	22	750	19009001120
