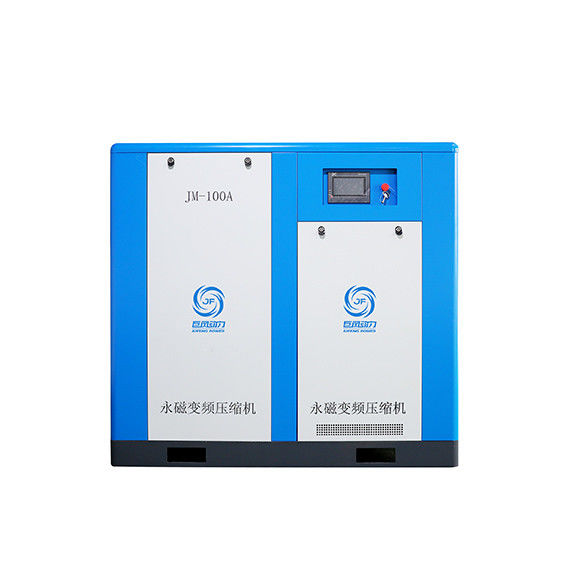

100HP 75kw Permanent Magnetic VSD Air Compressor Single Stage Screw Type

Brand Name:	Jufeng
Model Number:	JM-100A
MOQ:	1 unit
Price:	contact us
Packaging Details:	Three plywood cases
Payment Terms:	L/C, D/A, D/P, T/T, Western Union, MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, ASME, etc.

Power Range:

75KW

Noise Level:

75±2 DB(A)

Air Flow:

10.5~13.4m³/min

Type:

VSD

Pressure Range:

7—12 Bar

Power Source:

Electric

Energy Efficiency:

High

Cooling System:

Air Cooled

Variable Speed Drive:

Yes

After-sales Service:

Online Remote Support

Supply Ability:

5000 units per month

Highlight:

75kw Permanent Magnetic VSD Air Compressor

Permanent Magnetic VSD Air Compressor Screw Type

100 HP screw air compressor Single Stage

Product Description

100HP 75kw Single stage Screw Type Permanent Magnetic VSD air compressor

Product feature

High-efficiency induction motor, Integrated Variable Speed Driven (VSD) with speed control, Leading control and protection, Soft starting eliminates drive stress
Saves your money by lowering your operation cost.
When operating at part-load, the performance is top in class. The variable speed IntelliDriven avoids load cycling and maintains a steady state of operation, reducing operating and maintenance costs.
Class-leading performance achieved by state-of-the-art airend design and manufacturing processes, coupled with the reduction of internal losses, means that airend full-load performance.

Technical parameter

Model	Power(KW)	Exhaust Volume m³/min	Pressure Bar	Noise level dB(A)	Outlet pipe diameter	Dimension (LWH) mm	Weight Kg	Consumption of oil L
JM-100A	75	13.4	7	75±2	G2"	180012501670	1140	52
		12.8	8
		11.2	10
		10.5	12
