Place of Origin:
China
Brand Name:
Jufeng
Certification:
CE, ISO etc.
Model Number:
JF-10AVI

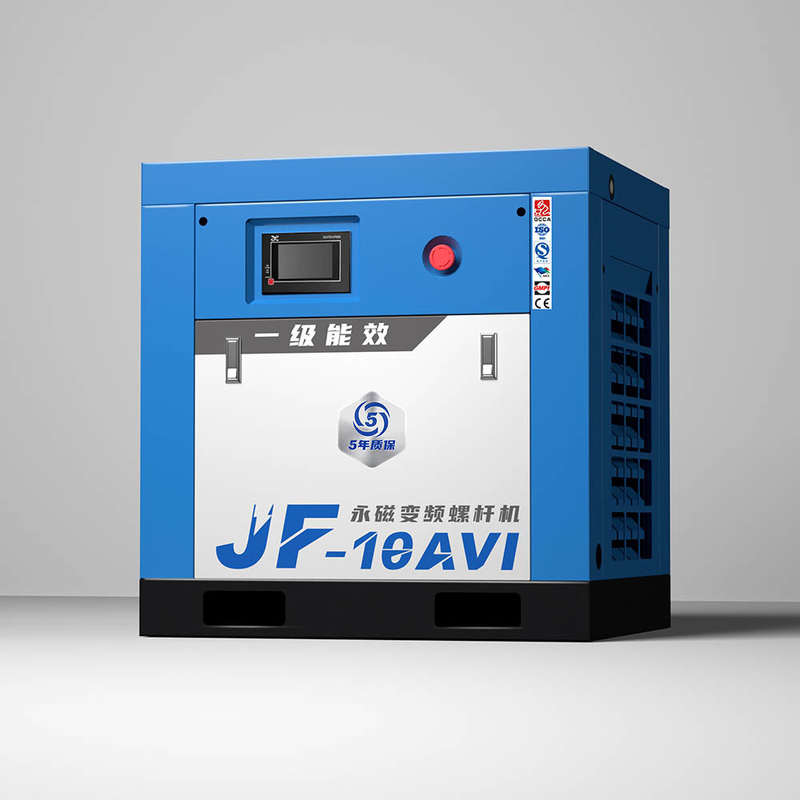

10HP Permanent Magnet IP65 Motor Oil-cooled Screw Air Compressor
1.The JF series air-end independently developed byJufeng has adjusted the rotor ratio from the original 4:6 to 5:6.
2.Reduced the rotor gap, changed the helix angle, and increased the exhaust volume.
3.The use of IP65 oil-cooled motor reduces shaft power and prolongs the service life of the motor. The motor energy efficiency reaches YE5.The oil-cooled motor has a constant temperature and is more suitable for extremely harsh conditions.
Product parameter
|
Model
|
Power(KW)
|
Exhaust volume
(m³/min)
|
Pressure
(Mpa)
|
Dimension
(L*W*H)
|
Weight
(kg)
|
Cooling
method
|
Noise
|
Air Outlet Pipe
Diameter
|
Motor protection
level
|
| JF-10AVI | 7.5 | 1.1 | 0.8 | 800*680*825 | 149 |
Axial
air
cooling
|
63 | G3/4 | IP65 |
