75hp 55kw industrial permanent magnet screw air compressor

Brand Name:	Jufeng
Model Number:	JM-75A
MOQ:	1 unit
Price:	Contact us
Packaging Details:	Export wooden box packaging
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO etc

Document:

jufeng brochure-2025.pdf

Power:

75 HP

Compressor Type:

Rotary Screw

Pressure:

8bar

Air Flow:

7.3-10.5 M³/min

Power Source:

Electric

Voltage:

380V/3Ph/50Hz

Starting Method:

Variable Frequency Start-up

Cooling Method:

Air-cooled

Outlet Size:

G2''

Weight:

1180kg

Supply Ability:

2000 units per month

Highlight:

Air Compressor Air Purifier

Product Description

75hp 55kw industrial permanent magnet screw air compressor

Product Introduction

Jufeng Permanent Magnet Screw Air Compressor is designed for businesses seeking to maximize productivity and minimize energy costs. It combines advanced motor technology with intelligent control to deliver a reliable and clean air supply precisely matched to your needs.

At the heart of this compressor is a high-efficiency permanent magnet synchronous motor (PMSM). This motor, directly coupled to the screw airend, eliminates transmission energy loss and provides superior performance across its entire operating range. The integrated variable speed drive (VSD) automatically adjusts the motor's speed in real-time to meet your exact air demand, ensuring no energy is wasted during periods of lower consumption.

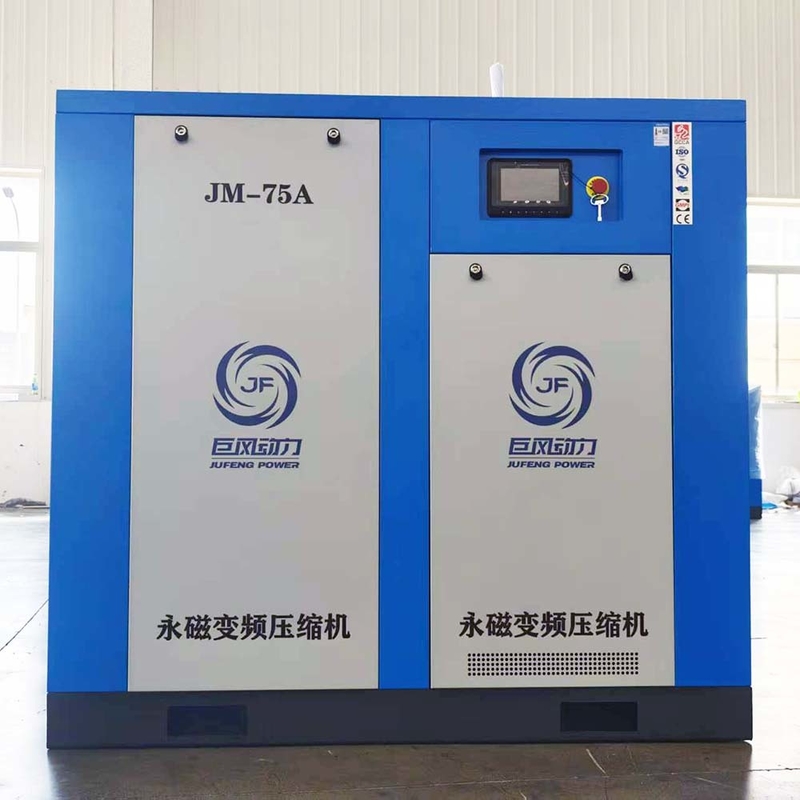

Product photo

75hp 55kw industrial permanent magnet screw air compressor 0

Product parameters

Model	Power	Exhaust volume(m³/min)	Pressure (bar)	Noise level dB(A)	Outlet pipe diameter	Dimension	Weight	Consumption
JM-75A	55kw	10.5	7	74±2	G2''	180012501600 mm	1180kg	52
		9.6	8
		8.5	10
		7.3	12
