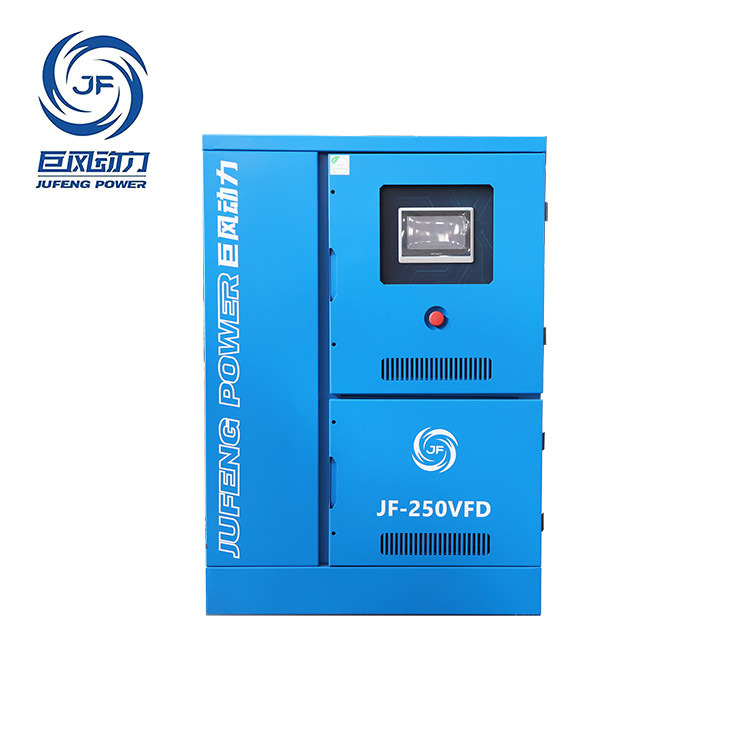

Eco-Friendly VFD Refrigerated Air Dryer

Brand Name:	Jufeng
Model Number:	JF-250VFD
MOQ:	1 unit
Price:	contact us
Packaging Details:	wooden case
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

Document:

Jufeng air dryer2025.pdf

Name:

VFD Refrigerated Air Dryer

Air Volume:

25m³/min

Pressure:

0.6~1.6Mpa

Air Inlet Temperature:

≤60℃

Composite Integrated Heat Exchanger:

3003 O

Pressure Dew Point:

2~7℃

Pressure Loss:

≤0.021Mpa

Cooling Method:

Air-cooled

Power Supply:

380~415VAC 50Hz 3P

Power:

4.2kw

Refrigerant:

R410A

Interface Size:

G3''

Size:

1300*900*1290mm

Weight:

256kg

Supply Ability:

2000 unit per month

Highlight:

0.25bar (under 7 bar inlet pressure) Refrigerated air dryer

2-45°C Refrigerated air dryer

0.25bar (under 7 bar inlet pressure) Refrigerated air dryer 2-35℃

Product Description

Eco-Friendly VFD Refrigerated Air Dryer

Product features

Utilizes fully enclosed refrigeration compressors from leading domestic and international brands, delivering powerful cooling and stable operation.

Heat exchangers and condensers are constructed from high-quality materials with excellent heat transfer coefficients.

Specially designed cold/heat exchangers utilize the cold output air to precool the incoming hot air, preventing pipeline condensation and improving energy efficiency.

High-performance refrigeration components and control elements ensure superior performance and extended service life.

The cooling system incorporates pressure-switch-controlled fans for precise temperature regulation and optimized refrigeration eficiency.

Unique refrigeration system design achieves lower evaporation temperatures without ice formation, adapting to complex working conditions without ice blockage.

High-precision protection devices ensure safe machine operation.

Unique suction design with a rational structure for easy maintenance.

Product picture

Product parameters

Model	Air flow m³/min	Pressure Mpa	Power supply	Air pipe connection	Refrigerant	Dimension mm	Weight KG
JF-010	1.2	0.7~1.6	220-240VAC-50Hz-1P	G¾''	R410A	550450720	37
JF-015	1.6			G1''		550450750	43
JF-020	2.6			G1''		630450790	49.5
JF-030	3.8			G1½''		660450850	57.5
JF-050	6.9					860530960	80.5
JF-085	8.5					860530960	86.2
JF-105	10.5		220-380VAC-50Hz-1P	G2''		9205601060	96.8
JF-135	13.5		380-415VAC-50Hz-3P			11506601110	126
JF-150	15					11506601110	141
JF-180	18			G2½‘’		13108181392	240.5
JF-220	23			G2½‘’		13108181392	240.5
JF-250	25			G3''		13008701441	256
JF-280	28			G3''		13008701441	256
JF-320	32	0.7~1.3		DN100		14209201586	332
JF-380	38						373
JF-450	45						382
JF-500	50					186015001790	695
JF-550	55			DN125
JF-600	60
JF-650	65
