SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor

Brand Name:	Jufeng
Model Number:	JS-06
MOQ:	1 unit
Price:	contact us
Packaging Details:	Carton packaging
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO, etc.

Document:

Jufeng air dryer2025.pdf

Name:

Refrigerated Air Dryer

Air Volume:

0.6m³/min

Pressure:

7-20 Bar

Power Supply:

380~415VAC 50Hz 3P

Input Power:

0.38kw

Material:

SUS 304

Pressure Dew Point:

2-10℃

Cooling Method:

Air-cooled

Refrigerant:

R410A Or You Need

Inlet/Outlet Size:

G1/2''

Size:

400*342*540mm

Weight:

25kg

Supply Ability:

1000 units per month

Highlight:

Carbon steel Air tank

Eesy Air tank

Carbon steel Air tank Eesy

Product Description

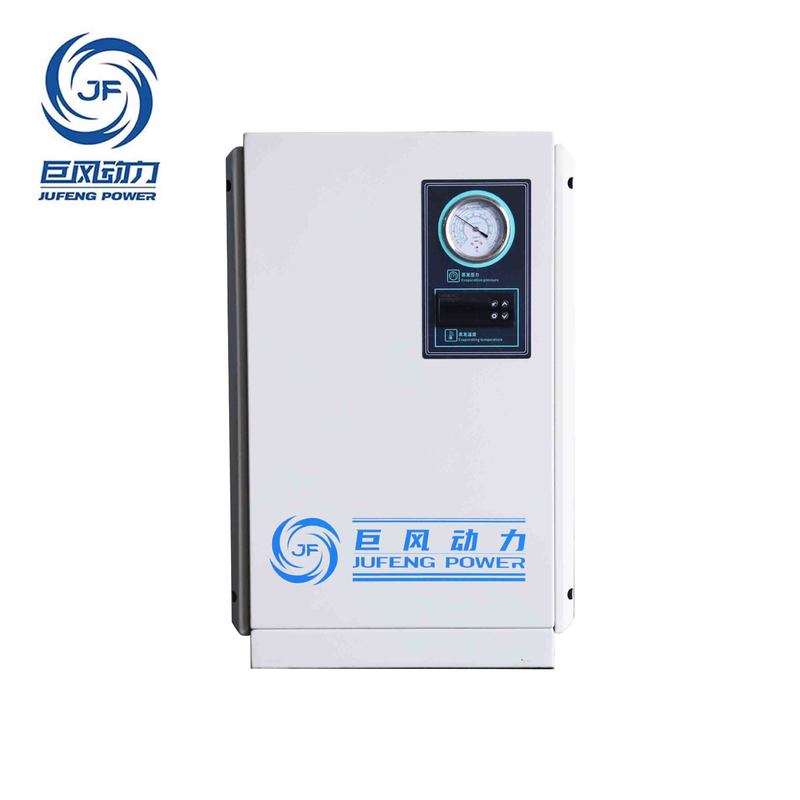

SUS304 Stainless Steel Refrigerated Air Dryer For Medical Air Compressor

Product Introduction

The Jufeng JS Series Refrigerated Air Dryer utilizes an integrated 3-in-1 heat exchanger made of SUS304 or SUS316 stainless steel. This design offers high corrosion resistance and prevents.
With higher pressure resistance, our customized products can support operating pressures of up to 5.0 MPa, enabling us to provide a wider range of drying solutions for compressed air andinert gases.

Product photo

Product parameters

Model	Air flow m³/min	Pressure Mpa	Power supply	Air pipe connection	Refrigerant	Total power consumption kw	Dimension mm	Weight
JS-12	1.2	0.7~2.0	220~240VAC-50Hz-1P	G3/4''	R410A	0.54	620440825	37
JS-16	1.6			G1''		0.6	620440830	43
JS-26	2.6			G1''		0.86	660500790	49.5
JS-38	3.8			G1½''		0.91	660500850	57.5
JS-65	6.9			G1½''		1.97	820580985	80.5
JS-85	8.5			G2''		3.3	820580985	126
JS-115	11.5					3.43	10806601100	126
JS-135	13.5					3.8	10806601100	141
