High Flow Refrigerated Air Dryer 812 CFM for Multiple Tools

Brand Name:	Jufeng
Model Number:	JF-220
MOQ:	1 unit
Price:	Contact us
Packaging Details:	Export wooden box packaging
Payment Terms:	T/T,D/P,D/A,L/C

Detail Information

Product Description

Detail Information

Place of Origin:

China

Certification:

CE, ISO etc.

Product Name:

Refrigerated Air Dryer

Capacity:

23m³/min

Color:

Blue, According Customers Demands

Size:

1310mm×818mm×1392mm

Weight:

245kg

Installation:

Portable

After-sales Service Provided:

Video Technical Support,Online Support

Warranty:

1 Year

Supply Ability:

2000 unts per month

Highlight:

Compressor Air Cleaning Device

Product Description

High Flow Refrigerated Air Dryer 812 CFM for Multiple Tools

Product introduction

The Jufeng refrigerated dryer reduces the water content in compressed air through forced cooling, which can protect the user's compressed air system and keep it dry and clean.

The plate heat exchanger adopts an integrated design of pre-cooler, evaporator and separator. The high-efficiency heat exchange plate-fin heat exchanger ensures that the giant air cooler dryer can provide industrial-grade drying solutions. The refrigeration system uses low-energy consumption refrigeration compressors and air-cooled condensers, and environmentally friendly refrigerants R134a and R410A. The whole machine is energy-saving and environmentally friendly. It is equipped with a new type of intelligent controller: integrating dew point display and fault alarm functions.

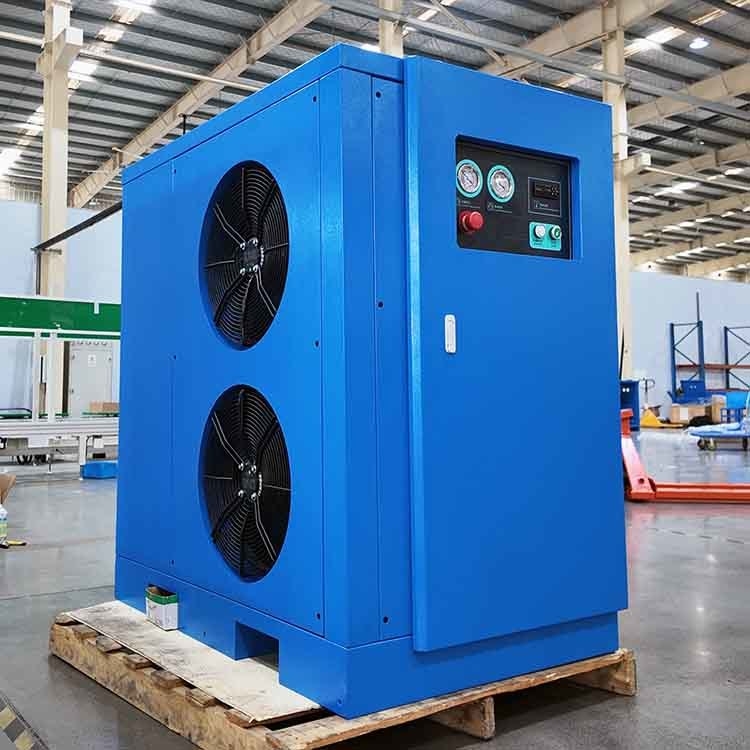

Product photo

High Flow Refrigerated Air Dryer 812 CFM for Multiple Tools 0

Product parameters

Air flow	23m³/min
Pressure	0.7~1.6 Mpa
Air inlet temperature	≦ 60℃
Standard ambient temperature	1~38℃
Pressure dew point	2-10℃
Pressure loss	≦ 0.021Mpa
Drain valve	Electronic automatic drain valve
Cooling method	Air-cooled
Power supply V/PH/Hz	380~415VAC 50Hz 3P
Overall machine power	4.01kw
Compressor power	3.83kw/50Hz
Refrigerant	R410A
Dimensions of import and export interfaces	G2-1/2"
Size	1310mm×818mm×1392mm
Weight	245kg

Product details

High Flow Refrigerated Air Dryer 812 CFM for Multiple Tools 1
