45m³/min High-Purity Air Dryer For CNC Machines And Pneumatic Tools

Brand Name:	Jufeng
Model Number:	JF-450
MOQ:	1 unit
Price:	contact us
Packaging Details:	Export wooden box packaging
Payment Terms:	L/C,D/A,D/P,Western Union,T/T,MoneyGram

Detail Information

Product Description

Detail Information

Place of Origin:

Jiangsu

Certification:

CE, ISO ETC.

Product Name:

Refrigerated Air Dryer

Capacity:

45 M³/min

Pressure:

7-13 Bar

Color:

Blue,According Customer Requirement

Installation:

Size:

1418mm×920mm×1595mm

Weight:

378kg

After-sales Service Provided:

Video Technical Support,Online Support

Warranty:

1 Year

Supply Ability:

2000 units per month

Highlight:

Compressor Air Treatment Equipment

Product Description

45m³/min High-Purity Air Dryer for CNC Machines and Pneumatic Tools

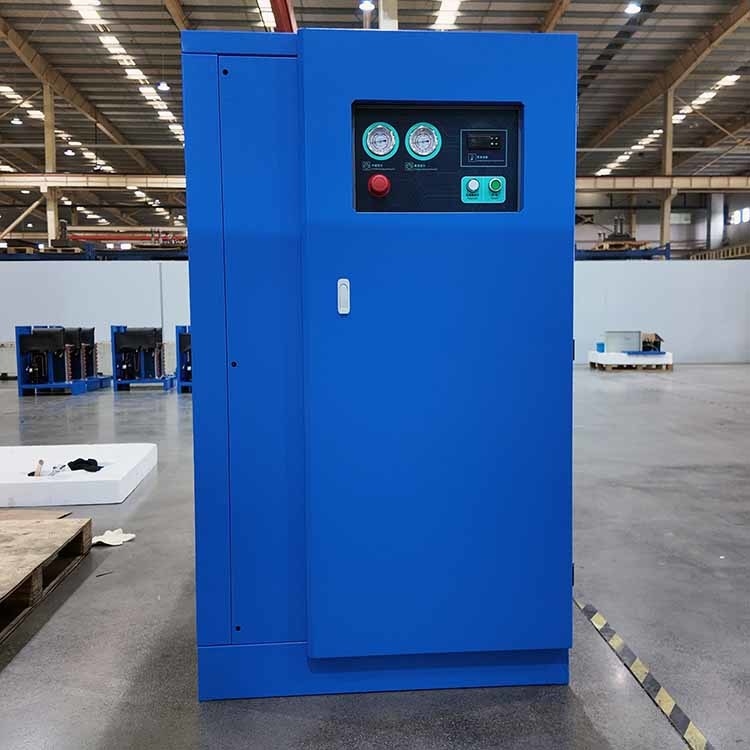

Product photo

Product parameters

Air flow	45m³/min
Pressure	0.7~1.3 Mpa
Air inlet temperature	≦ 60℃
Standard ambient temperature	1~38℃
Pressure dew point	2-10℃
Pressure loss	≦ 0.018Mpa
Drain valve	Electronic automatic drain valve
Cooling method	Air-cooled
Power supply V/PH/Hz	380~415VAC 50Hz 3P
Overall machine power	9.42kw
Compressor power	9.01kw/50Hz
Refrigerant	R410A
Takeover method	Flange
Dimensions of import and export interfaces	DN100
Size	1418mm×920mm×1595mm
Weight	378kg
