Refrigerated Air Dryer 1589 CFM, 189 PSI for Air Compressor Systems
  • name
  • name

Refrigerated Air Dryer 1589 CFM, 189 PSI for Air Compressor Systems

Brand Name: Jufeng
Model Number: JF-450
MOQ: 1 unit
Price: Contact us
Packaging Details: Packed in wooden cases
Payment Terms: L/C,D/A,D/P,T/T
Detail Information
Product Description
Detail Information
Place of Origin:
Jiangsu
Certification:
CE,ISO etc
Model:
JF-450
Power Source:
Electric
Compressed Air Pressure:
7 Bar-13 Bar
Capacity:
1589 CFM
Air Volume:
45m³/min
Supply Power:
220V/50Hz
Pressure Dew Point:
2~10℃
Color:
Blue
Net Weight:
378kg
Supply Ability:
2000 unitr per month
Highlight:

Air Compressor Freshener

Product Description

Refrigerated Air Dryer 1589 CFM, 189 PSI for Air Compressor Systems


Product introduction


Plate Heat Exchanger Compressed Air Dryer: A Compact Drying Solution

A plate heat exchanger compressed air dryer is an energy-efficient system designed to remove moisture from compressed air. It utilizes a specialized plate heat exchanger to cool the air, causing water vapor to condense and separate efficiently.

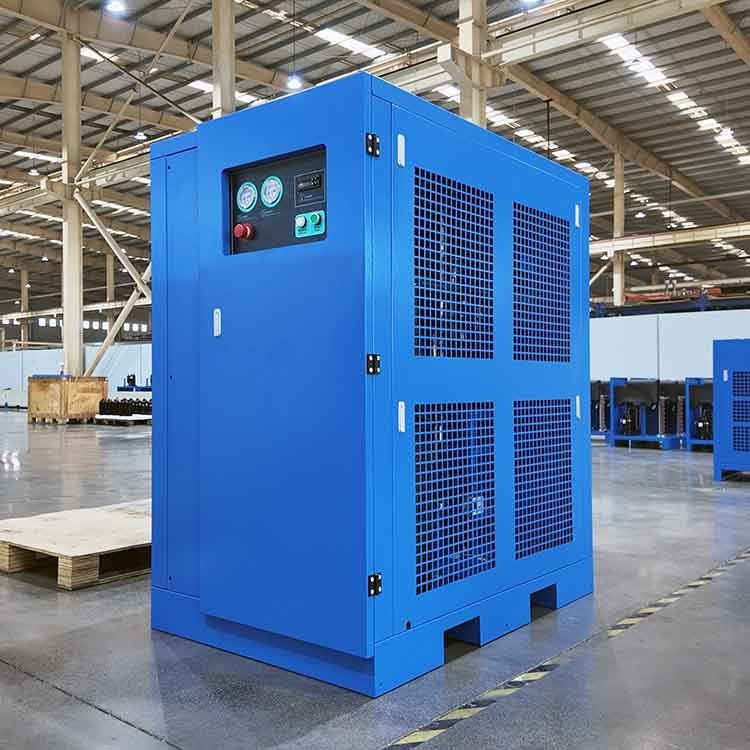

Product photo


Refrigerated Air Dryer 1589 CFM, 189 PSI for Air Compressor Systems 0


Product parameters


Air flow 45m³/min
Pressure 7-13bar
Intake temperature ≦ 60℃
Composite integrated heat exchanger Material: 3003 O

Pressure dew point

 2-10℃
Drain valve Electronic automatic drain valve
Cooling method Air-cooled
Power supply 380~415VAC 50Hz 3P

Overall machine power

 9.42kw

Compressor power

 9.01kw/50Hz

Refrigerant

 R410A

Interface size

 DN100

Size

 1418mm×920mm×1595mm

Weight

 378kg


Certificates


Refrigerated Air Dryer 1589 CFM, 189 PSI for Air Compressor Systems 1


Exhibitions


Refrigerated Air Dryer 1589 CFM, 189 PSI for Air Compressor Systems 2
